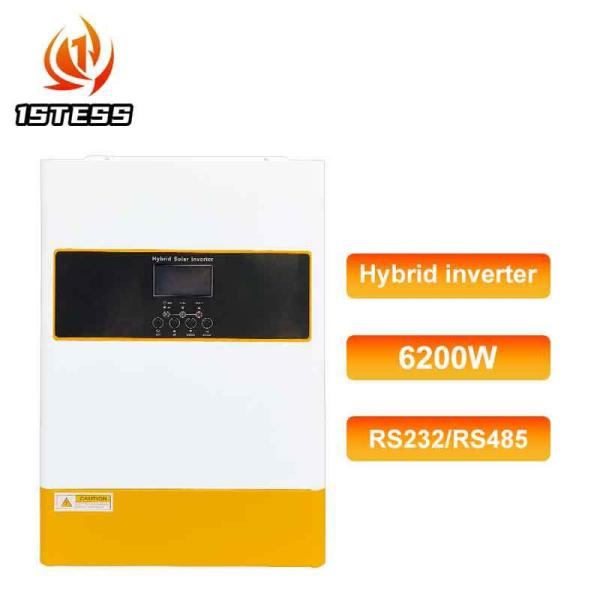

High PV Input 500Vdc Single Phase 48V 6.2kw Pure Sine Wave Off Grid Hybrid Solar Inverter with MPPT No Battery Mode

Brand Name : 1stess

Model Number : M (PV60-500VDC)6200-48PL

Certification : CE, IEC

Place of Origin : China

MOQ : 1 piece

Price : To be negotiated

Payment Terms : L/C,T/T

Supply Ability : 2000 pieces per month

Delivery Time : 30 days

Packaging Details : carton box

Charging Mode : MPPT

Operating Temperature : -10°C To 50°C

Inverter Type : hybrid solar inverter

Frequency : 50Hz/60Hz

Rated battery voltage : 48V

Size : 450*300*130mm

Contact Now

High PV Input 500Vdc Single Phase 48V 6.2kw Pure Sine Wave Off Grid Hybrid Solar Inverter with MPPT No Battery Mode

Place of Origin China
Mounting Method Wall Bracket
Frequency 50/60Hz
Capacity 6.2KVA/6.2KW
Parallel Capability YES,12 Units
Nominal Voltage 230VAC
Waveform Pure Sine wave
Battery Voltage 48VDC
Solar Charger Type MPPT
Max.PV Array Power 6500W
Max.Solar Charge Current 120A
Size 450*300*130mm
Weight 9.6kg
Communication Interface RS232/RS485
Product Features
  • Compatible work with lifepo4 battery
  • Paralleloperationupto 12 unitsin 1phase or 3phase
  • Direct Plug WlFlDongle Supported
  • Pure sine wave
  • Power factor 1.0
  • PVinput 500Vdc Max
  • Built-in MPPT 120A
  • Capable to work without battery
  • Detachabledustcoverforharshenvironment
  • WiFiremote monitoring optional
  • Support multiple output priority:UTL,SOL,SBU,SUB
  • EQ function to optimize battery performance and extend lifecycle

High PV Input 500Vdc Single Phase 48V 6.2kw Pure Sine Wave Off Grid Hybrid Solar Inverter with MPPT No Battery ModeHigh PV Input 500Vdc Single Phase 48V 6.2kw Pure Sine Wave Off Grid Hybrid Solar Inverter with MPPT No Battery ModeHigh PV Input 500Vdc Single Phase 48V 6.2kw Pure Sine Wave Off Grid Hybrid Solar Inverter with MPPT No Battery ModeHigh PV Input 500Vdc Single Phase 48V 6.2kw Pure Sine Wave Off Grid Hybrid Solar Inverter with MPPT No Battery ModeHigh PV Input 500Vdc Single Phase 48V 6.2kw Pure Sine Wave Off Grid Hybrid Solar Inverter with MPPT No Battery ModeHigh PV Input 500Vdc Single Phase 48V 6.2kw Pure Sine Wave Off Grid Hybrid Solar Inverter with MPPT No Battery ModeHigh PV Input 500Vdc Single Phase 48V 6.2kw Pure Sine Wave Off Grid Hybrid Solar Inverter with MPPT No Battery Mode


  1. Battery Communication: Supports communication with lithium batteries via RS485 for enhanced control and monitoring.

  2. Flexible Operation without Battery: Capable of operating in a "No Battery Mode," increasing application flexibility.

  3. Wide PV Input Voltage Range: MPPT operates from 60VDC to 450VDC, with a maximum open-circuit voltage of 500VDC.

  4. High PV Array Power: Can handle up to 6500W of solar array power.

  5. High Solar Charge Current: Delivers a maximum solar charge current of 120A.

  6. High AC Charge Current: Supports up to 80A of AC utility/generator charging current.
